MASSEY FERGUSON 2860E Compact Tractor

ENGINE & POWERTRAIN

» AGCO Power® 33L 3-Cylinder Turbo Diesel

• 60 HP (44.7 kW) rated | 65 HP (48.5 kW) max
• Tier 4 Final compliant (DPF aftertreatment)
• 2,200 RPM rated speed for fuel efficiency
• 74.6 lb-ft torque @ 1,600 RPM

» Transmission Options:

• Dyna-4™ Semi-Powershift (16F/16R)
• SyncroShuttle™ (12F/12R)
• Auto-Drive™ (HST) available

» PTO System:

• Independent 540/540E RPM
• Electro-hydraulic engagement
• Optional mid-PTO (2100 RPM)

---

HYDRAULICS & LIFT CAPACITY

» Loader-Ready Hydraulics

• 49.2 GPM (186 L/min) total flow
• 3 rear remotes standard
• 8,818 lbs (4,000 kg) lift capacity (at lift points)

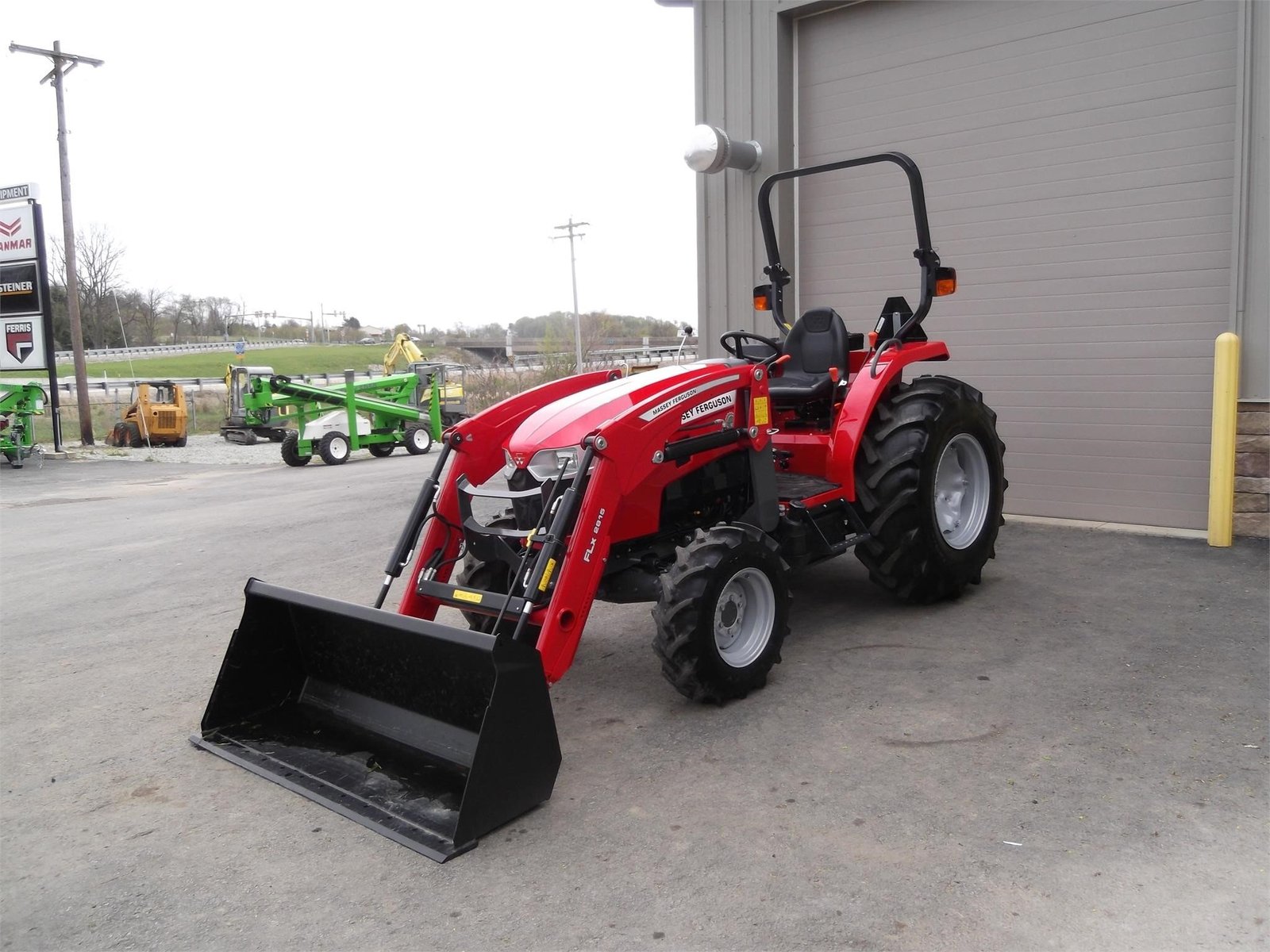

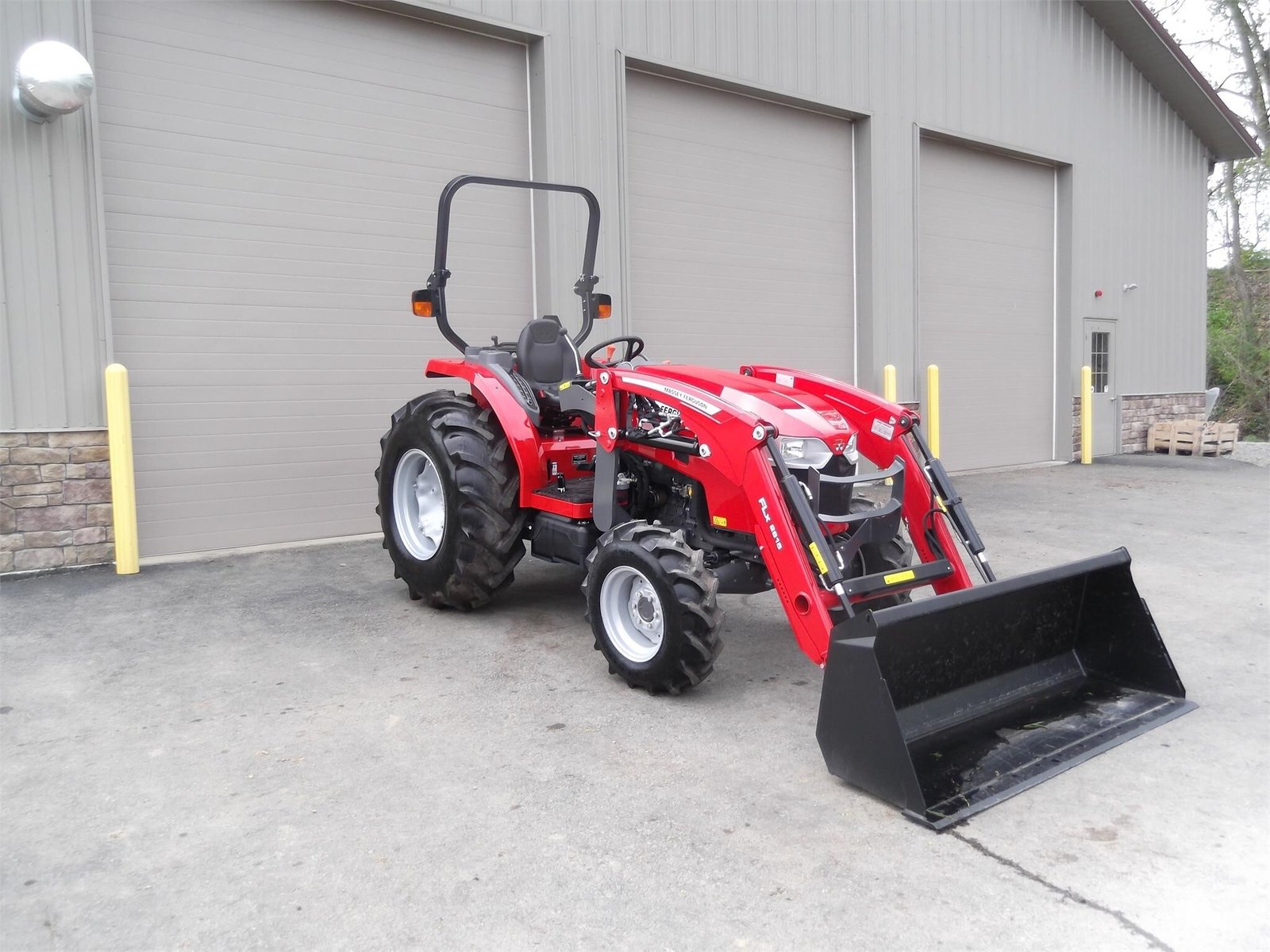

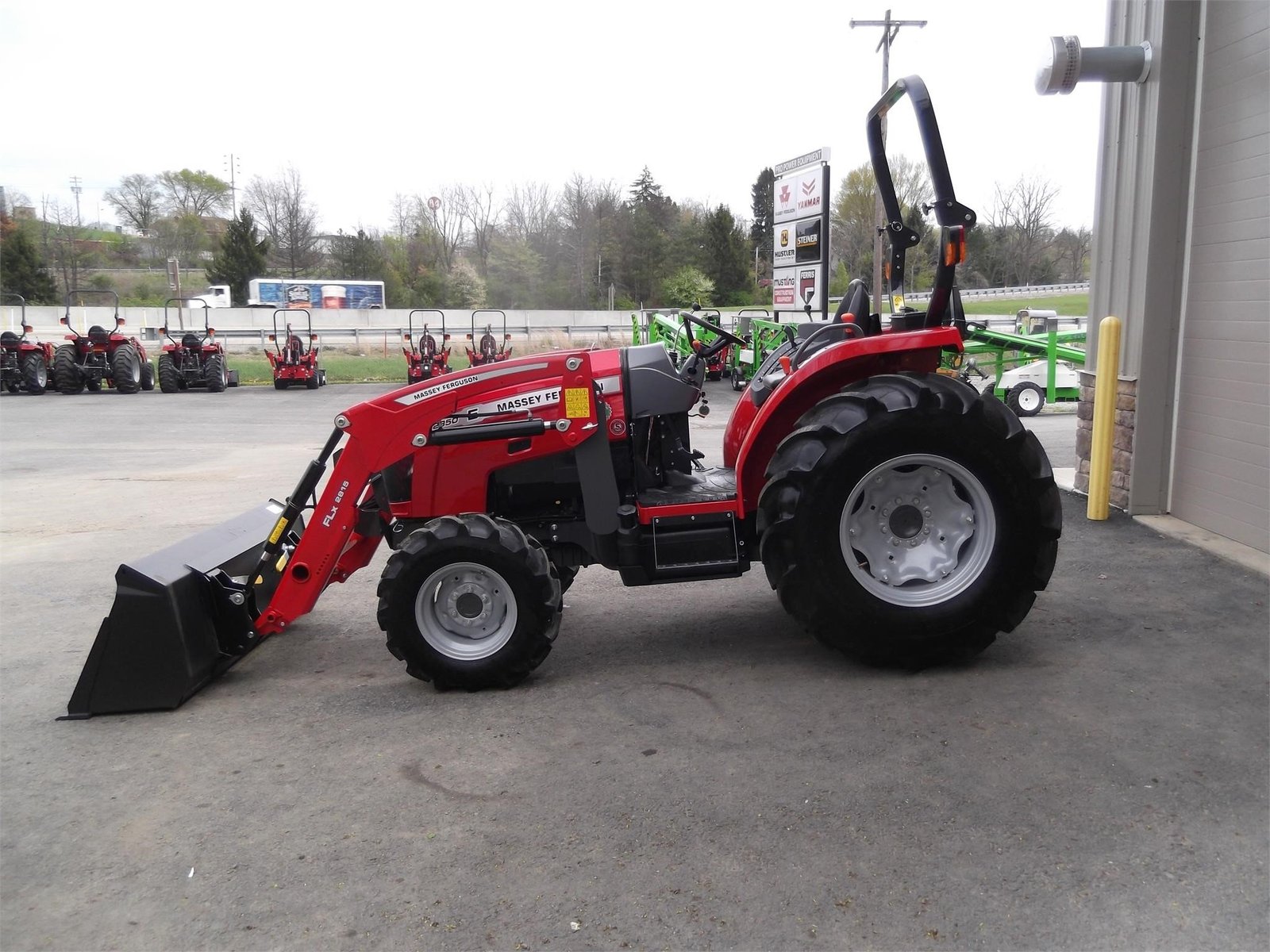

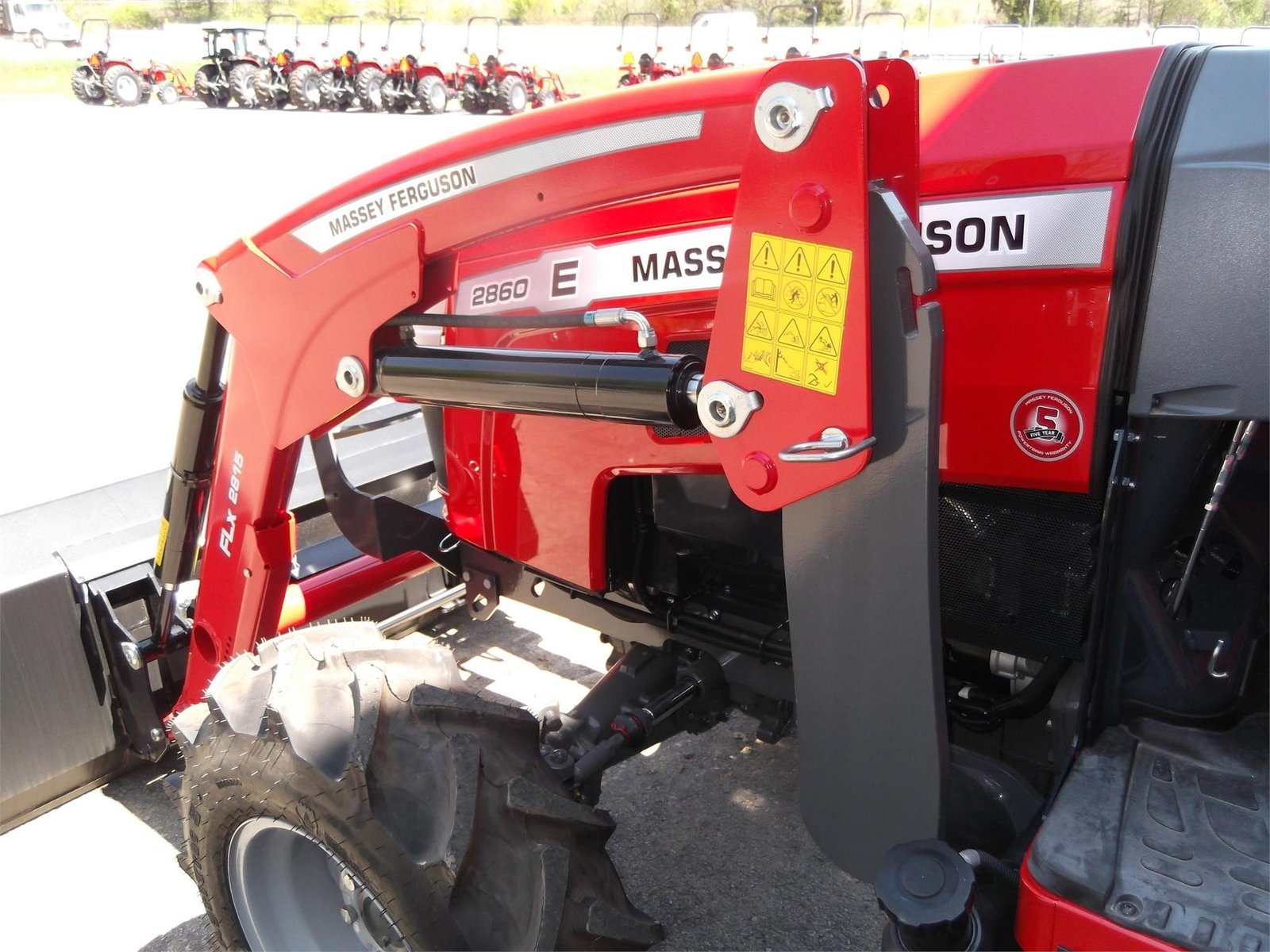

» MF 2400 Series Loader Specs:

• Max lift height: 118.1″ (3,000 mm)
• Breakout force: 5,842 lbs (2,650 kg)
• Bucket capacity: 1.25 yd³ (0.96 m³)

---

OPERATOR STATION

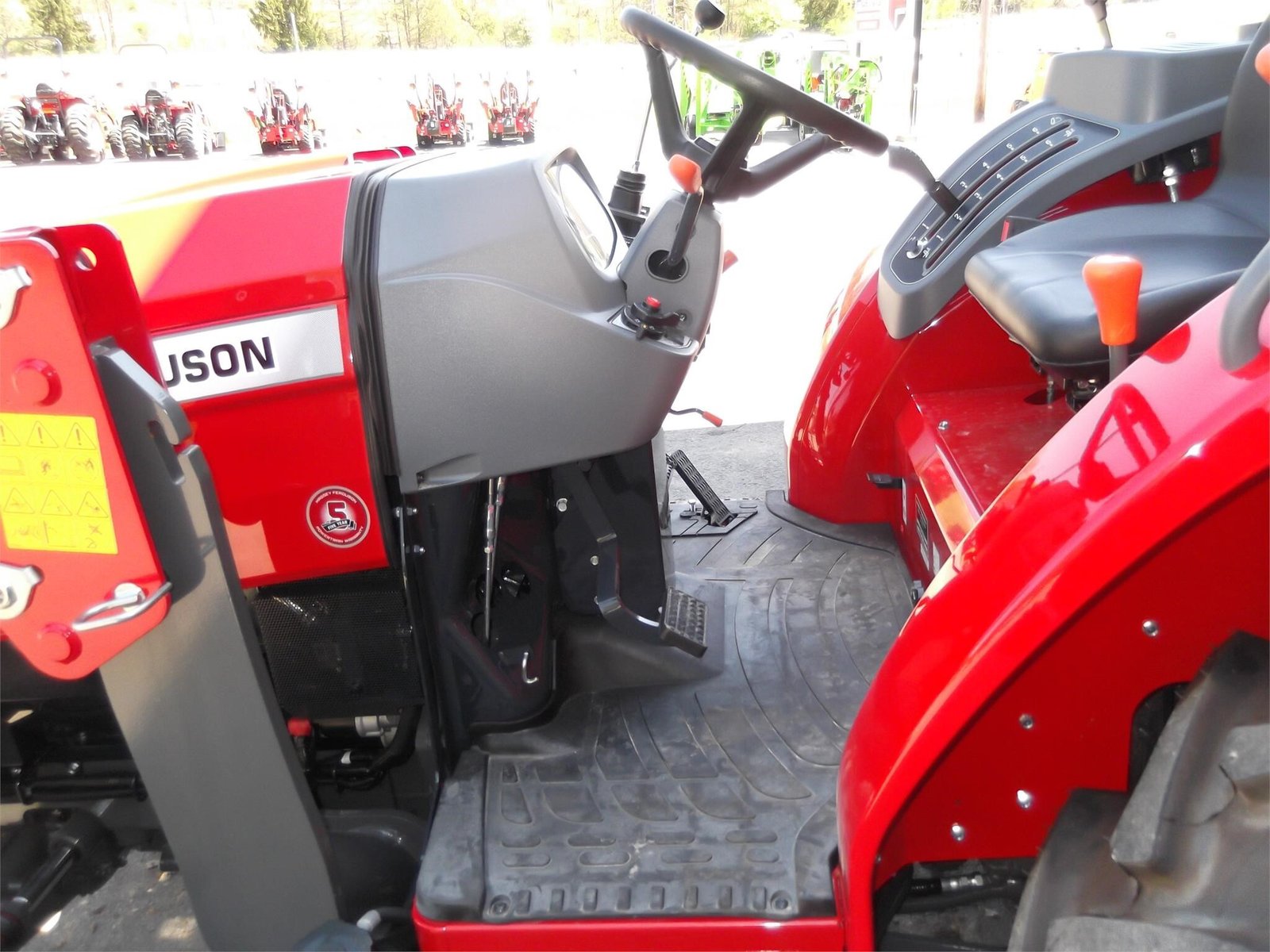

» Deluxe Flat Platform (ROPS)

• Air-ride suspension seat
• Tilt steering wheel
• Intuitive control layout

» Optional MF Comfort Cab

• AC/Heating with 2-speed fan
• 72 dB noise level
• LED lighting package

---

DIMENSIONS & CAPABILITIES

• Operating weight: 5,732 lbs (2,600 kg)
• Wheelbase: 78.7″ (2,000 mm)
• Min turning radius: 11.5′ (3.5 m)
• Fuel capacity: 17.4 gal (66 L)

---

ADVANCED FEATURES

✓ Auto-Differential Lock
✓ Cruise Control
✓ Dual Speed PTO
✓ Service Interval Indicator
✓ Toolbox & Storage

---

IDEAL APPLICATIONS

• Hay & Forage Operations
• Livestock Management
• Landscaping & Construction
• Municipal Maintenance
• Vineyard & Orchard Work
