MASSEY FERGUSON 4707 COMPACT TRACTOR

CORE SPECIFICATIONS

» AGCO Power® 33L 4-Cylinder Turbo Diesel

• 70 HP (52.2 kW) rated | 74 HP (55 kW) max
• Tier 4 Final (DOC+SCR aftertreatment)
• 2,200 RPM rated engine speed
• 221 lb-ft (300 Nm) max torque

» Transmission Options:

• Dyna-6™ Semi-Powershift (24F/24R)
• Mechanical Shuttle (12F/12R)
• Auto-Drive™ (HST) available

» PTO System:

• Independent 540/540E/1000 RPM
• Electro-hydraulic engagement
• Optional mid-PTO (2100 RPM)

---

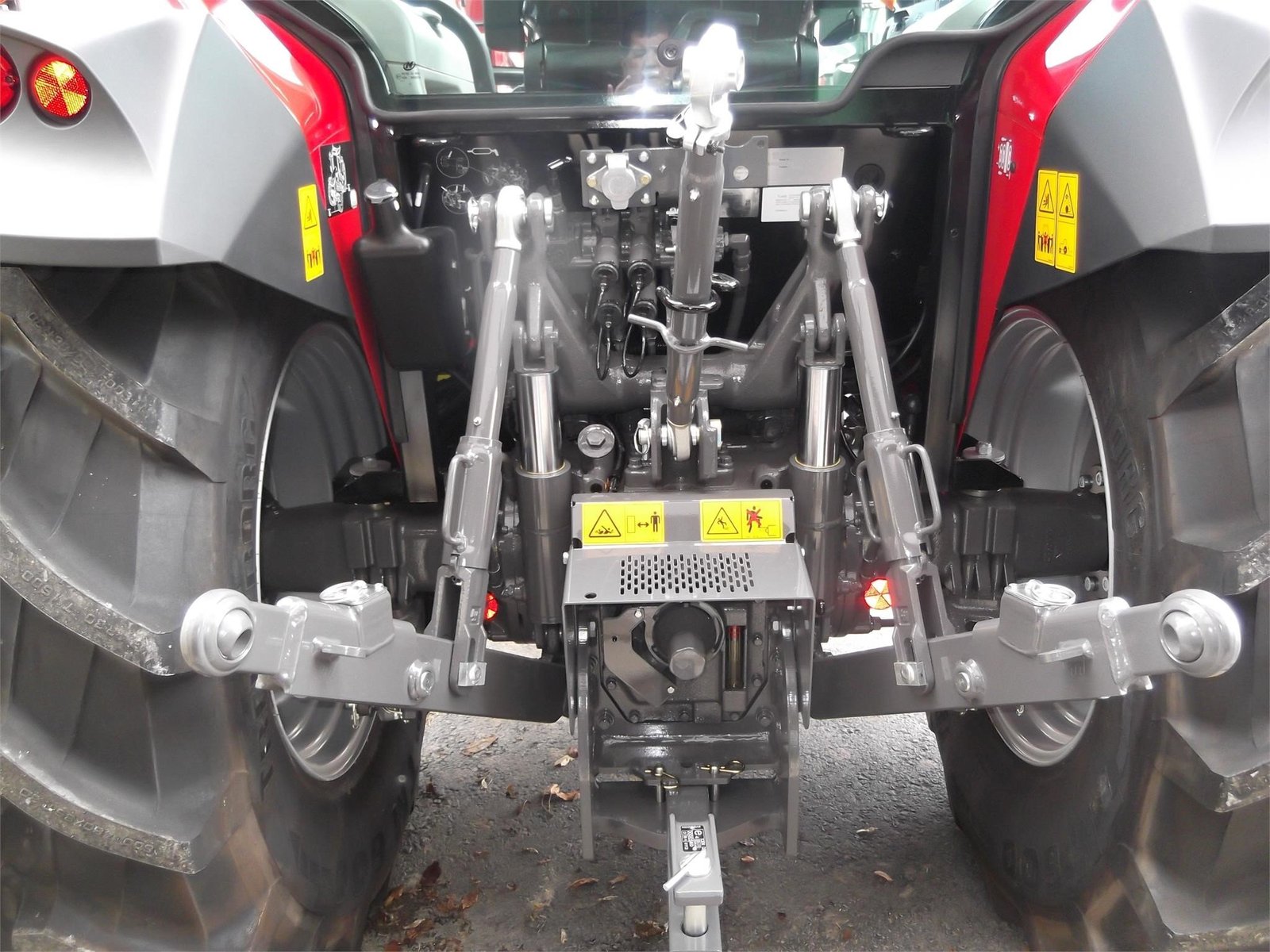

HYDRAULIC PERFORMANCE

» High-Flow Hydraulic System

• 18.5 GPM (70 L/min) total flow
• 3 rear remotes standard
• 9,920 lbs (4,500 kg) lift capacity

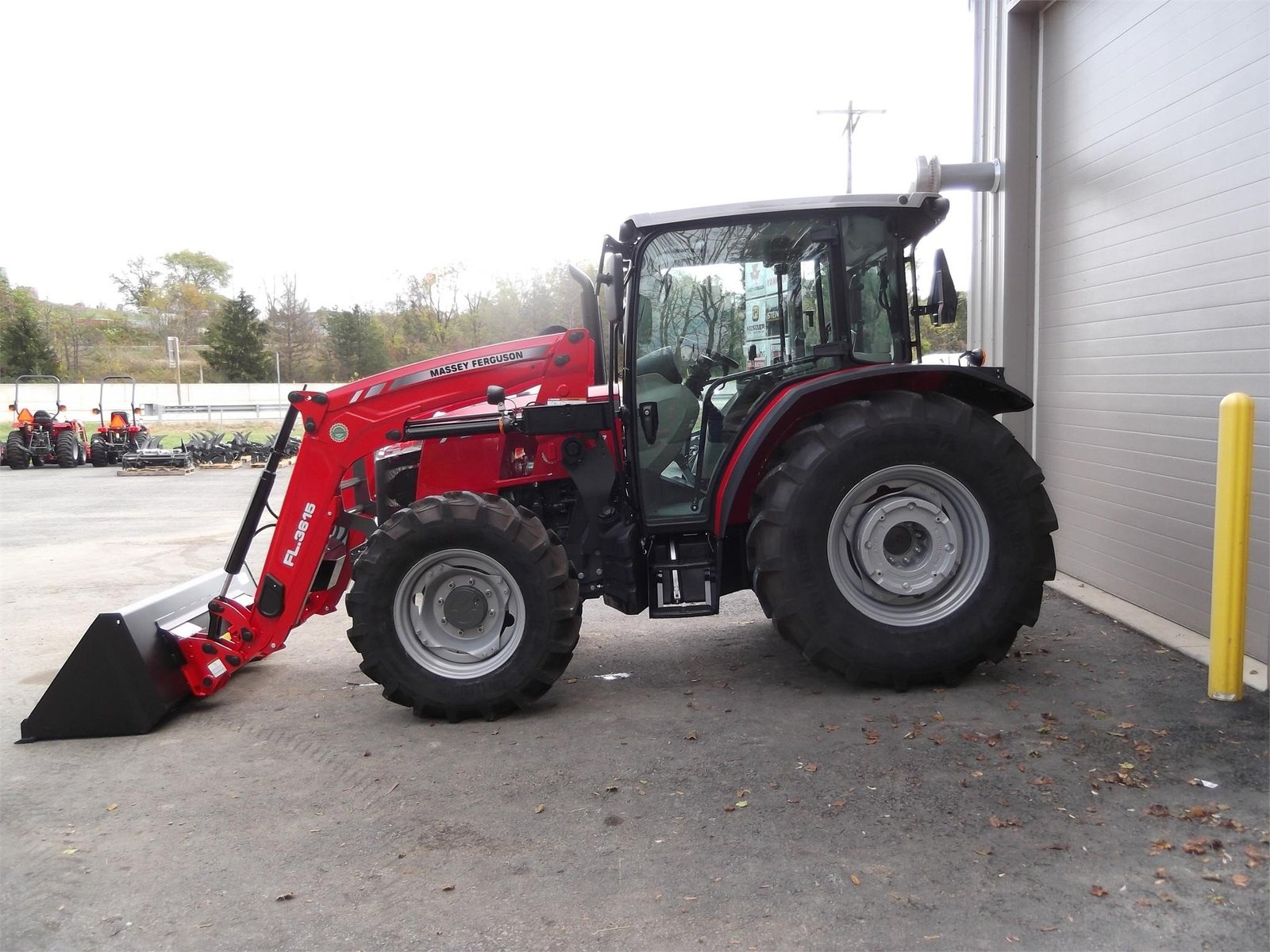

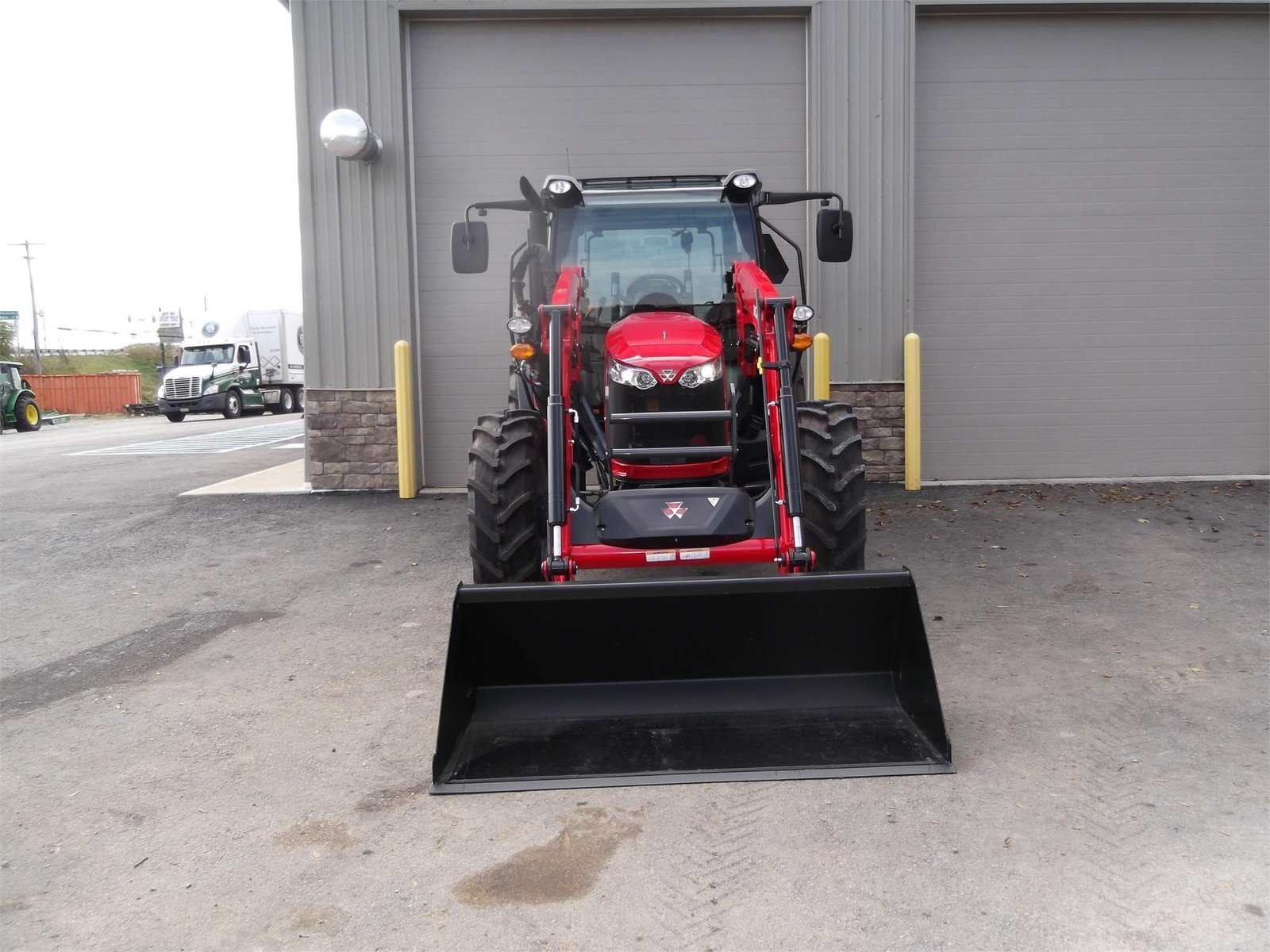

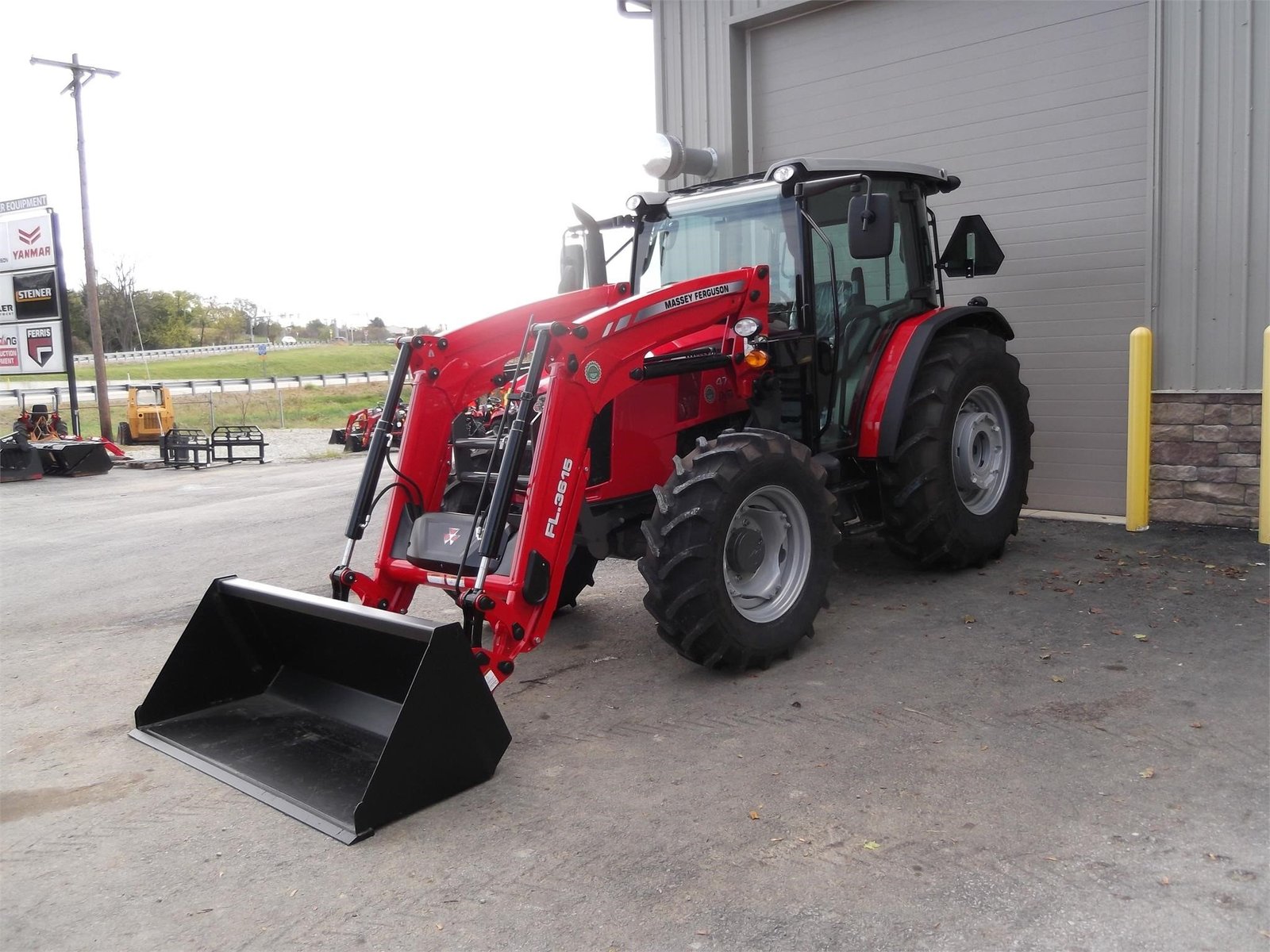

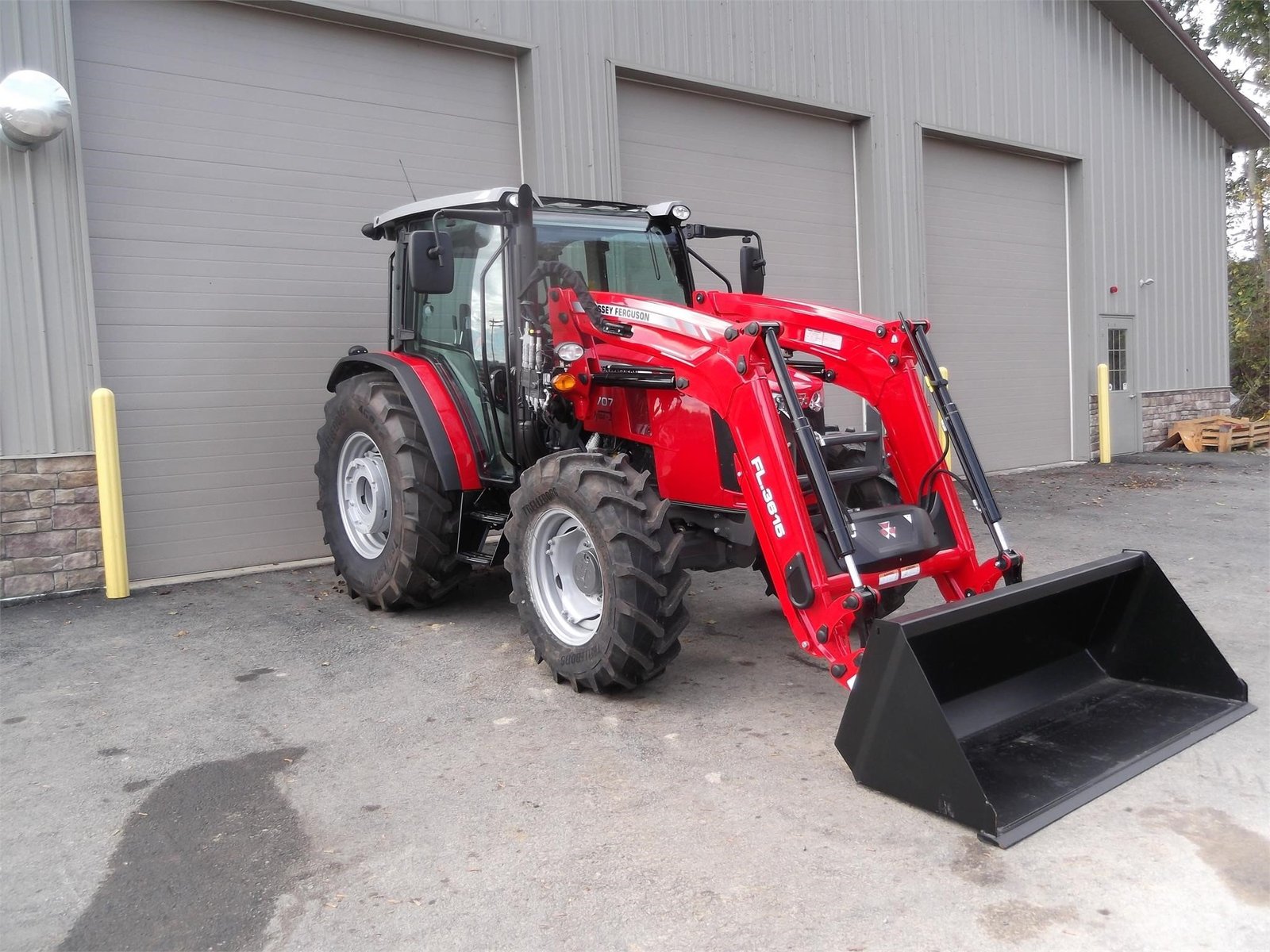

» MF 2400 Series Loader Specs:

• Max lift height: 126″ (3,200 mm)
• Breakout force: 6,614 lbs (3,000 kg)
• Bucket capacity: 1.5 yd³ (1.15 m³)

---

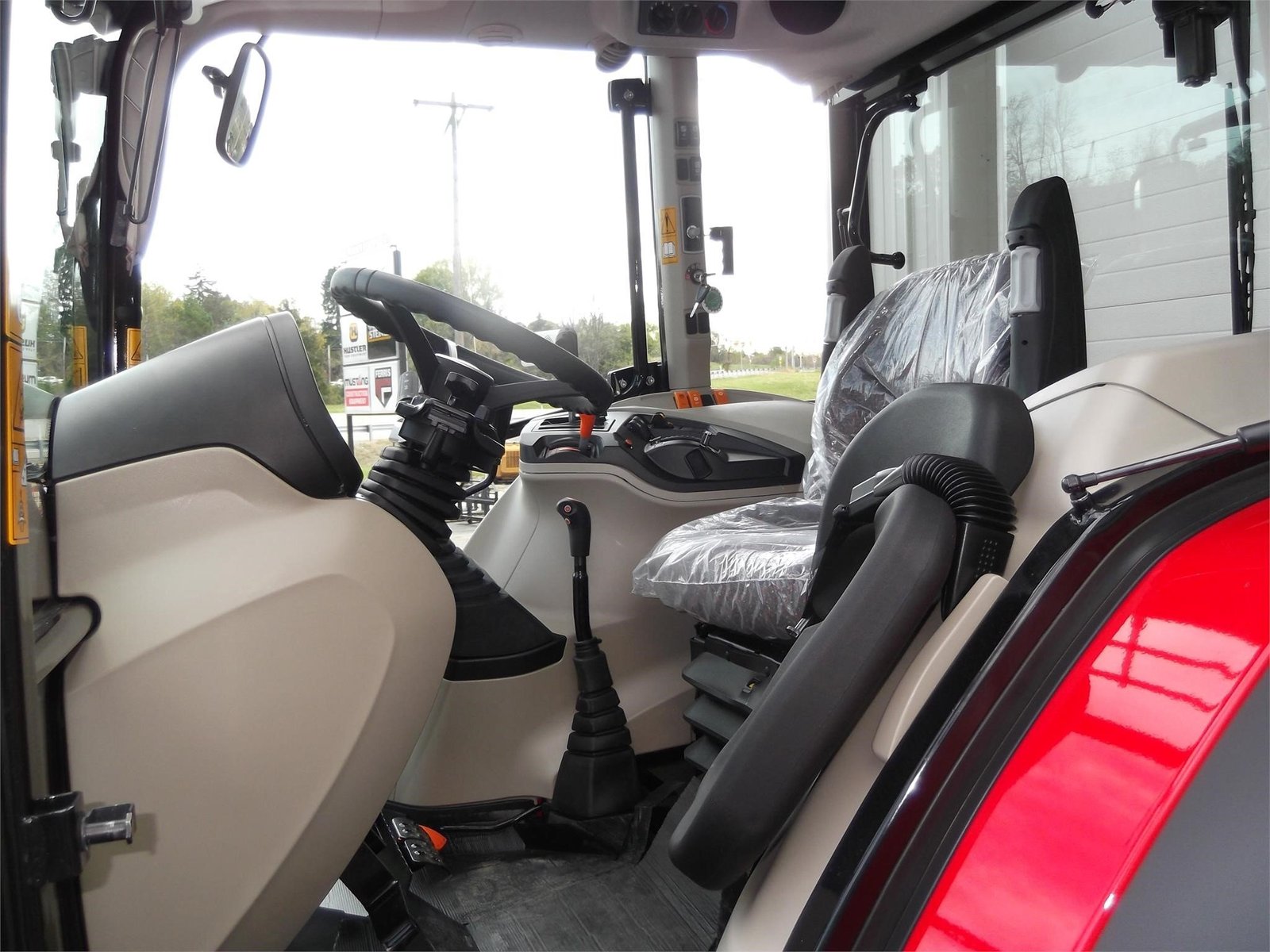

OPERATOR ENVIRONMENT

» Deluxe Flat Platform (ROPS)

• Grammer® air suspension seat

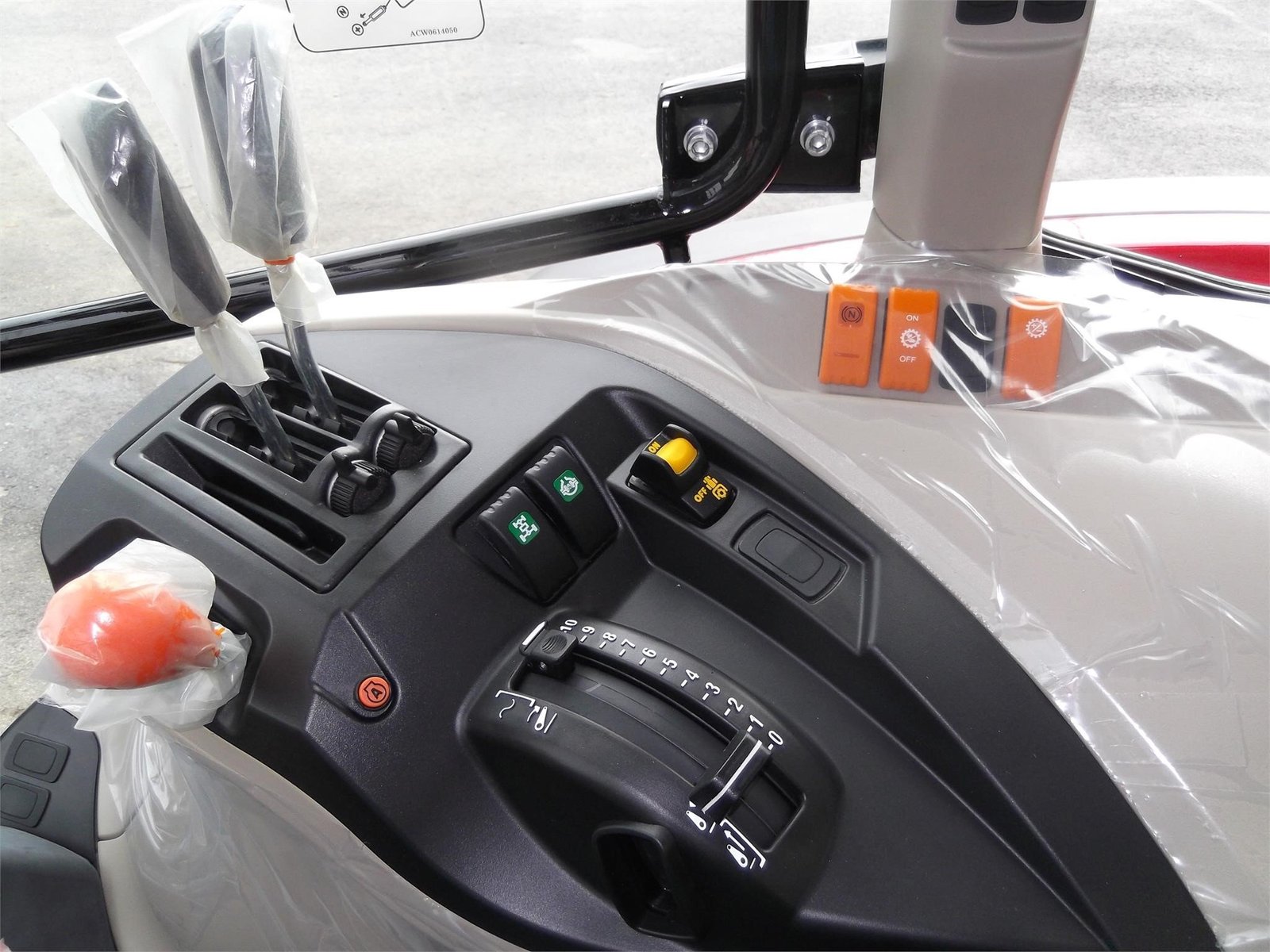

• Intuitive control console
• Foldable ROPS structure

» Optional MF Comfort Cab

• AC/Heating with air filtration
• Soundproofed (70 dB)
• Full LED lighting

---

DIMENSIONS & CAPABILITIES

• Operating weight: 6,173 lbs (2,800 kg)
• Wheelbase: 83.5″ (2,120 mm)
• Min turning radius: 12.8′ (3.9 m)
• Fuel capacity: 21.1 gal (80 L)

---

PROFESSIONAL FEATURES

✓ Auto-Differential Lock
✓ Cruise Control
✓ Dual Speed PTO
✓ Service Interval Indicator
✓ Integrated Toolbox

---

IDEAL APPLICATIONS

• Mid-Scale Farming Operations
• Commercial Landscaping
• Livestock & Dairy Farms
• Municipal Maintenance
• Vineyard & Orchard Work
